3 dBd Gain Base Station Antenna for 450 MHz band

Full Description

This meticulously constructed base station antenna with integrated multipurpose mounting bracket comes with a generous bandwidth which reduces the need for multiple antennas both in stock and on installation sites.

  • High power antenna design
  • Customer specified center frequency in X version
  • No groundplane needed

‍

‍

Technical Information

Electrical specifications
Type
Half Wave Dipole
Beamwidth
Beamwidth
50 ohm
Frequency
380 - 400 MHz, 406 - 430 MHz, 410 - 430 MHz, 417 - 450 MHz, 430 - 450 MHz, 440 - 470 MHz, 467 - 485 MHz, 485 - 503 MHz, 406 - 512 MHz (A/B/C/D/E/F/G/H/X)
Frequency Type
UHF – TETRA/P25 (380-420 MHz)
UHF – Broadcast (470-694 MHz)
UHF – PMR/LMR/DMR (420-470 MHz)
Bandwidth
For X version: Approx. 5 % of the specified Centre Frequency (CF)
Impedance
50 ohm
VSWR
A, C, E, G, H, X: < 1.5:1, B: < 1.5:1 (406-423 MHz) and < 2.0:1 (423-430 MHz), D: < 1.5:1 (417-439 MHz) and < 2.0:1 (439-450 MHz), F: < 1.5:1 (446-470 MHz) and < 2.0:1 (440-446 MHz)
Polarisation
Vertical
Gain
3 dBd, 5.1 dBi,
Electrical Beam-Tilt
0°

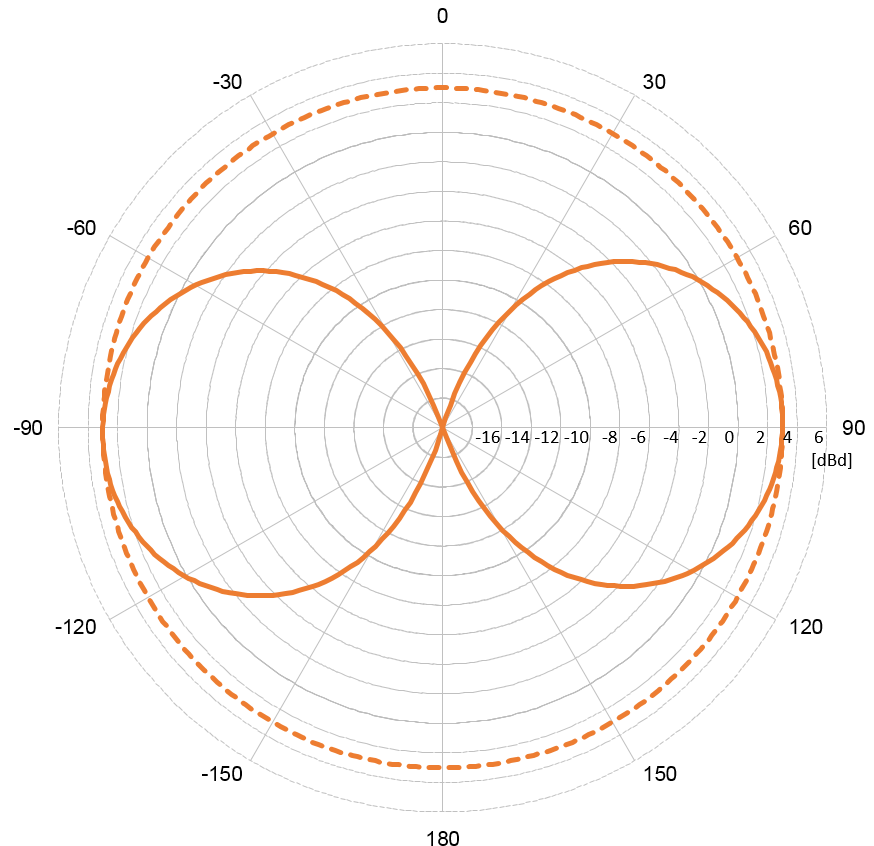

Radiation Pattern
Omni Directional (Horizontal)
Half Power Beamwidth
Omni Directional (Horizontal)
Max. Input Power
300 W
Spacing
Insertion Loss
Isolation (Suppression)
Frequency Stabilty
Antistatic Protection
Direct Ground
Attenuation
Insertion Loss (Tx)
Tx-Tx Spacing
Tx-Rx Spacing
Isolation Tx-Tx
Isolation Rx-Tx
Isolation Tx-Rx
Isolation Rx-Rx
Lna Noise Figure
Power Supply
Mechanical specifications
Color
White, Black and Orange

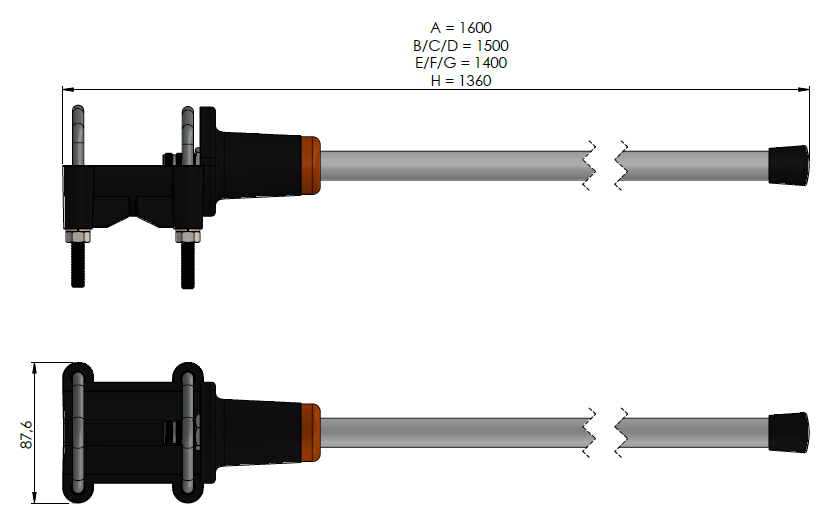

Length
See Outline Drawing
Weight
Max. 1.2 kg
Mounting
Integral Clamp
Wall mount Bolts not included
Mounting Place
On Tube (Ø 30 - 60 mm, vertical or horizontal) or Wall mount (mounting hole distance 68.5 mm).
Survival Wind Speed
55 m/s
Operating Temperature
-55C to +70C (IEC 60068-2-1, IEC 60068-2-2)
Connector/ Cable / Pigtail
N-female
Ingress Protection
IP66
Materials
Antenna: Brass, Copper, Fibreglass and Aluminium. Mounting Kit: Stainless steel A4 (AISI-316)
Ordering information
No items found.
23304-004B
406-430 MHz (Individually packing in Carton tube)
23304-004C
410-430 MHz (Individually packing in Carton tube)
23304-004D
417-450 MHz (Individually packing in Carton tube)
23304-004E
430-450 MHz (Individually packing in Carton tube)
23304-004F
440-470 MHz (Individually packing in Carton tube)
23304-004G
467-485 MHz (Individually packing in Carton tube)
