5 dBd Gain Base Station Antenna for 450 MHz band

Full Description

This meticulously constructed base station antenna with integrated multipurpose mounting bracket comes with a generous bandwidth which reduces the need for multiple antennas both in stock and on installation sites.

  • High power antenna design
  • No groundplane needed

‍

Technical Information

Electrical specifications
Type
Half Wave Dipole
Beamwidth
Beamwidth
50 ohm
Frequency
380 - 410 MHz, 400 - 430 MHz, 420 - 450 MHz, 440 - 470 MHz (A/B/C/D)
Frequency Type
UHF – TETRA/P25 (380-420 MHz)
UHF – PMR/LMR/DMR (420-470 MHz)
Bandwidth
A/B/C/D: 30 MHz
Impedance
50 ohm
VSWR
< 1.5:1
Polarisation
Vertical
Gain
5 dBd, 7.1 dBi,
Electrical Beam-Tilt
0°

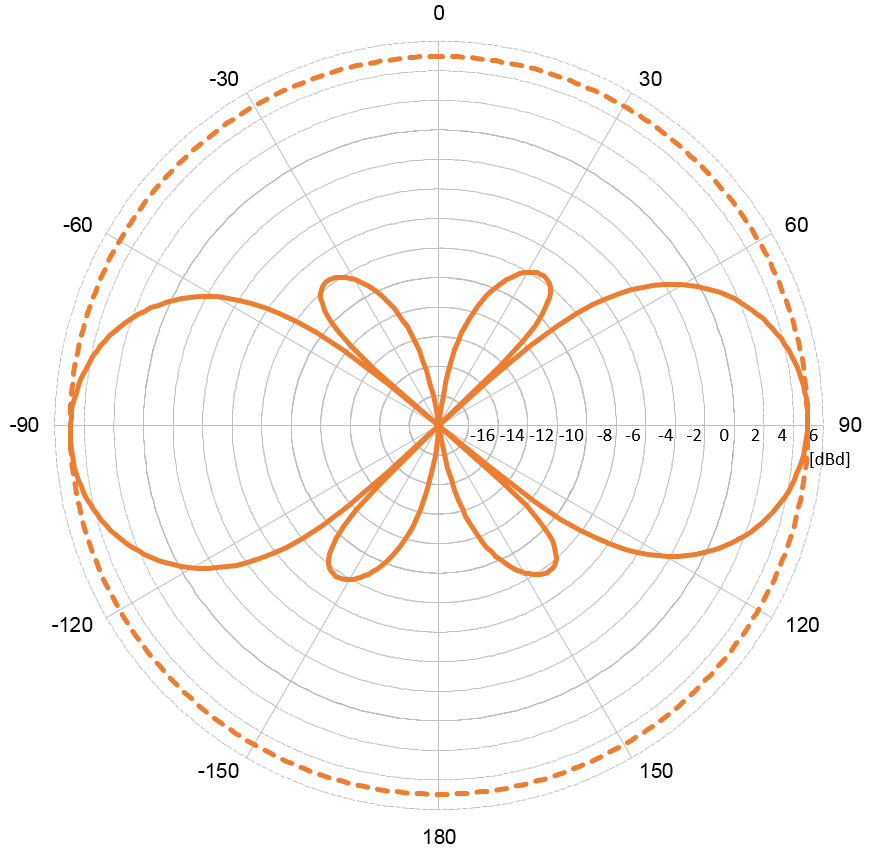

Radiation Pattern
Omni Directional (Horizontal)
Half Power Beamwidth
18°
Max. Input Power
250 W
Spacing
Insertion Loss
Isolation (Suppression)
Frequency Stabilty
Antistatic Protection
Attenuation
Insertion Loss (Tx)
Tx-Tx Spacing
Tx-Rx Spacing
Isolation Tx-Tx
Isolation Rx-Tx
Isolation Tx-Rx
Isolation Rx-Rx
Lna Noise Figure
Power Supply
Mechanical specifications
Color
White, Black and Orange

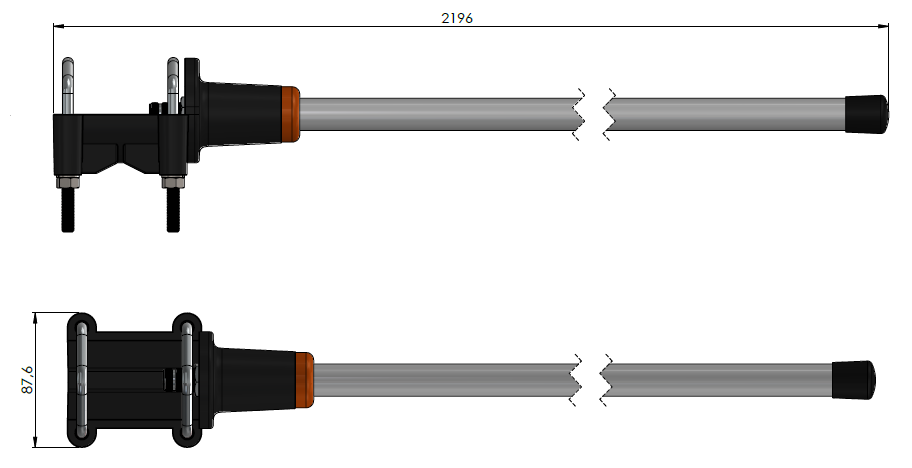

Length
2196 mm
Weight
Max. 1.78 kg

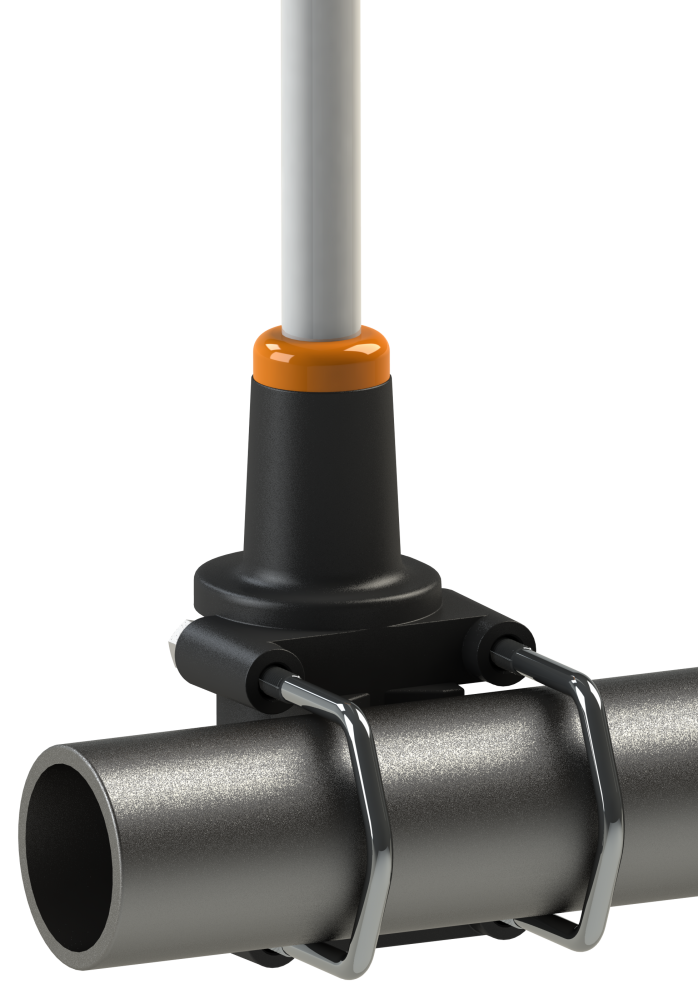

Mounting
Integral Clamp
Mounting Place
On Tube (Ø 30 - 60 mm, vertical or horizontal) or Wall mount (mounting hole distance 68.5 mm).
Survival Wind Speed
55 m/s
Operating Temperature
-55C to +70C (IEC 60068-2-1, IEC 60068-2-2)
Connector/ Cable / Pigtail
N-female
Ingress Protection
IP66
Materials
Antenna: Brass, Copper, Fibreglass and Aluminium. Mounting Kit: Stainless steel A4 (AISI-316)
Ordering information
No items found.
23504-004A
380-410 MHz (Individually packing in Carton tube
23504-004B
400-430 MHz (Individually packing in Carton tube)
23504-004C
420-450 MHz (Individually packing in Carton tube)
23504-004D
440-470 MHz (Individually packing in Carton tube)
Packaging information
All Renair products are carefully packaged to ensure they arrive in perfect condition, every time. We use durable, protective materials that shield against impact, moisture and transit damage. Whether it’s a delicate antenna or a heavy-duty mount, every item is securely sealed and clearly labelled for fast, error-free handling.
‍
We’re also committed to sustainable packaging practices. Wherever possible, our packing materials are recyclable or biodegradable, and we actively avoid unnecessary plastics. Our approach balances robust protection with minimal environmental impact — making it better for your team and the planet.
Disclaimer
Here you will find a full range of products for building a complete antenna system. We offer a single-source supply of high-quality components, manufactured within the EU. Whatever type of antenna you require, you will find a suitable solution here.
‍
We have taken great care to ensure the information provided in this product sheet is accurate. However, Renair reserves the right to make changes without prior notice.
‍
All rights reserved. Please see our Terms & Conditions for more.
No items found.
View the Data Sheet
HERE
