MAST/RAIL MOUNT HD G1"-11

MAST/RAIL MOUNT HD G1"-11

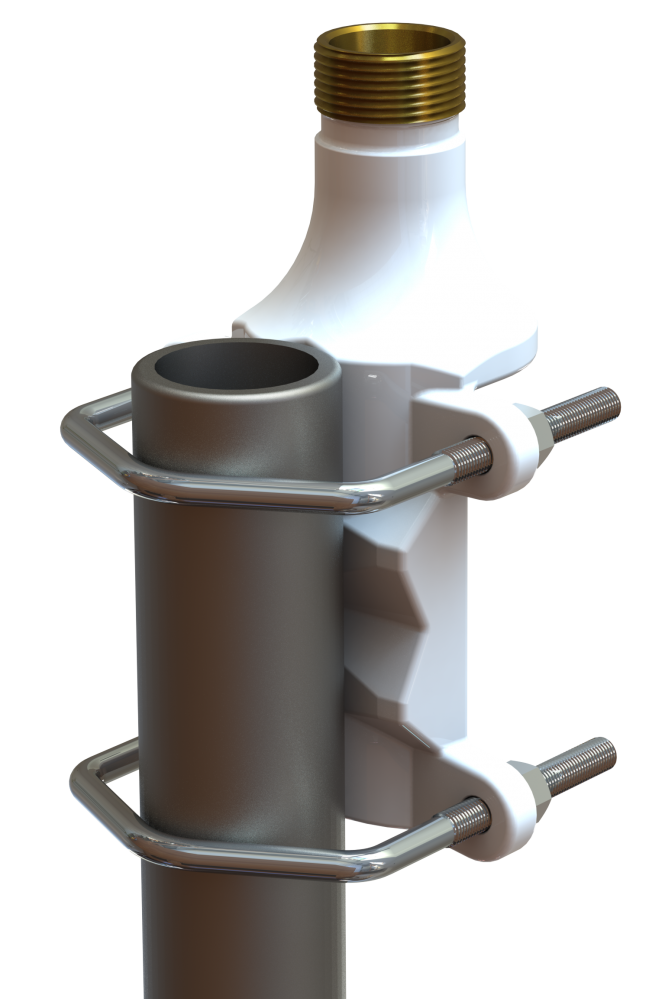

PU-painted solid brass heavy duty pole bracket

Full Description
  • Heavy duty bracket for installation of Marine and Base Station Antennas on vertical or horizontal pole
  • Made from PU powder coated solid brass for long term use at sea

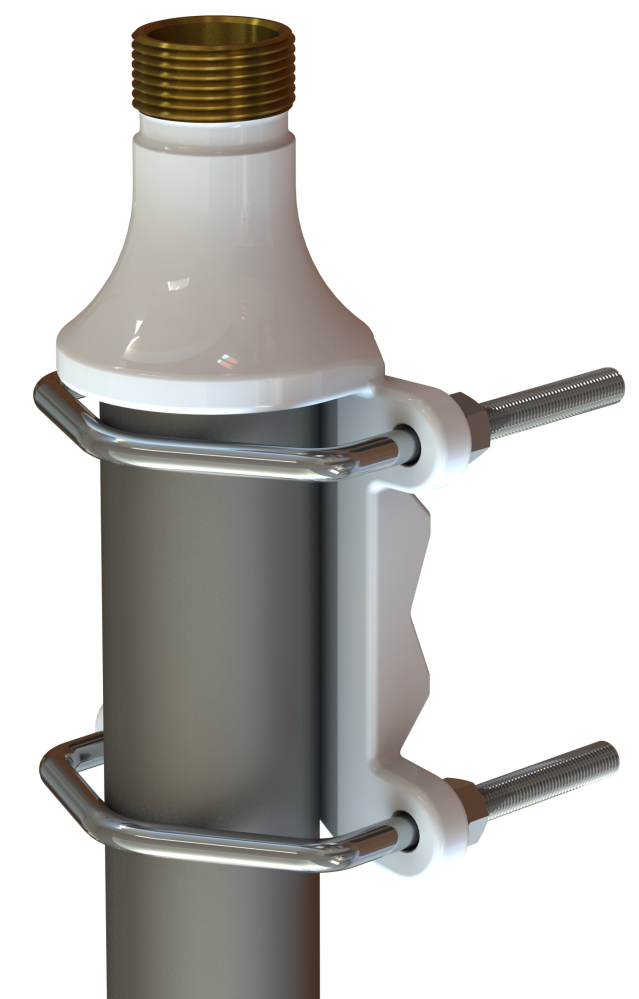

  • Mounting vertically overhead or on side of poles Ø 38 - 75 mm or horizontally on side beams Ø 30 - 75 mm. Optionally mounting on wall with screws (not supplied)

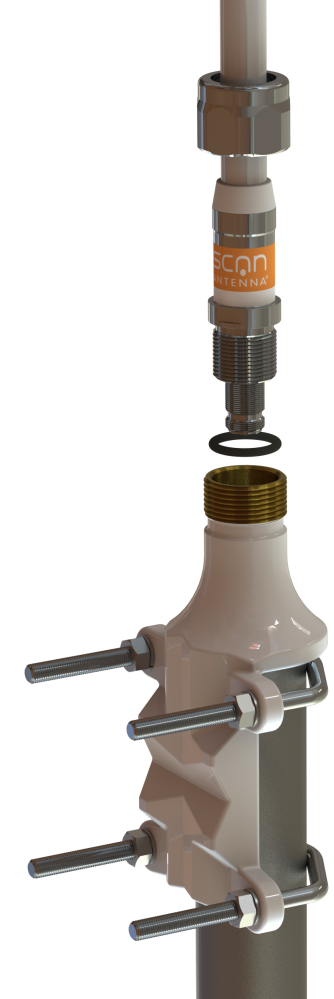

  • For all antennas with the 1" Revolving Nut Mounting System base
  • Stainless steel hardware included

‍

Technical Information

Electrical specifications
Type
Beamwidth
Beamwidth
50 ohm
Frequency
Frequency Type
No items found.
Bandwidth
Impedance
VSWR
Polarisation
Gain
Electrical Beam-Tilt
Radiation Pattern
Half Power Beamwidth
Max. Input Power
Spacing
Insertion Loss
Isolation (Suppression)
Frequency Stabilty
Antistatic Protection
Attenuation
Insertion Loss (Tx)
Tx-Tx Spacing
Tx-Rx Spacing
Isolation Tx-Tx
Isolation Rx-Tx
Isolation Tx-Rx
Isolation Rx-Rx
Lna Noise Figure
Power Supply
Mechanical specifications
Color
White
Length

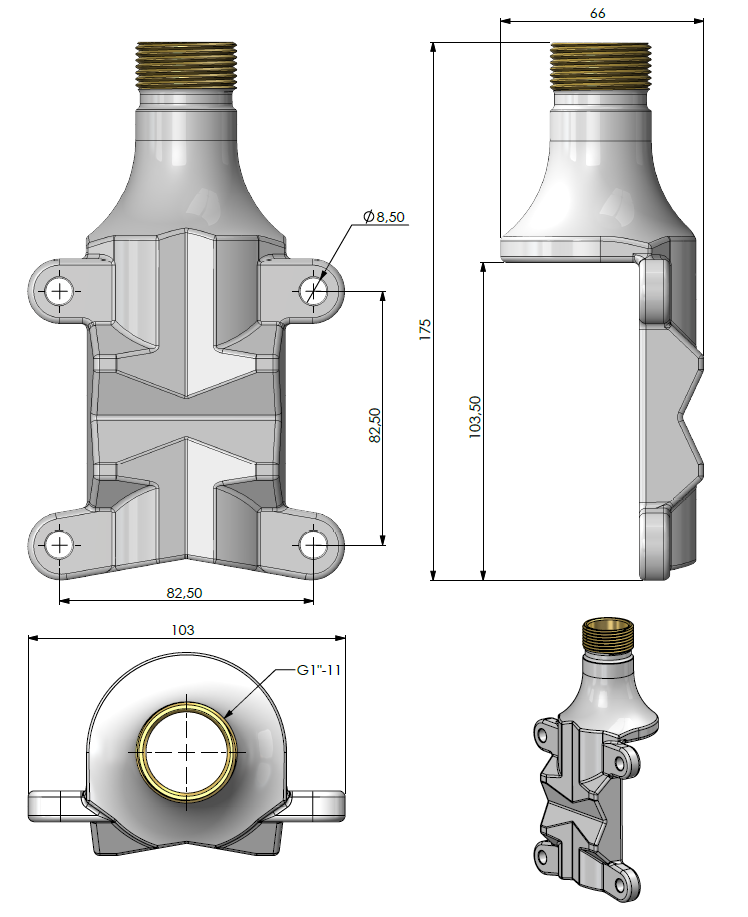

175 x 103 x 66 mm
Weight
1500 g (Hardware included)
Mounting
G1"-11 (Standard)
Mounting Place
On vertical or horizontal pole or rail (optionally on wall), NOTE! 1" Revolving Nut Kit 10000-431 is not included!
Survival Wind Speed
Operating Temperature
Connector/ Cable / Pigtail
Ingress Protection
Materials
PU-painted solid brass and stainless steel
Ordering information
No items found.
10000-133
Individually packing in Carton box
Packaging information
All Renair products are carefully packaged to ensure they arrive in perfect condition, every time. We use durable, protective materials that shield against impact, moisture and transit damage. Whether it’s a delicate antenna or a heavy-duty mount, every item is securely sealed and clearly labelled for fast, error-free handling.
‍
We’re also committed to sustainable packaging practices. Wherever possible, our packing materials are recyclable or biodegradable, and we actively avoid unnecessary plastics. Our approach balances robust protection with minimal environmental impact — making it better for your team and the planet.
Disclaimer
Here you will find a full range of products for building a complete antenna system. We offer a single-source supply of high-quality components, manufactured within the EU. Whatever type of antenna you require, you will find a suitable solution here.
‍
We have taken great care to ensure the information provided in this product sheet is accurate. However, Renair reserves the right to make changes without prior notice.
‍
All rights reserved. Please see our Terms & Conditions for more.
No items found.
View the Data Sheet
HERE
