VHF73AIR

VHF73AIR

3 dB VHF Fibreglass Antenna 1.44 m with N-female connector

Full Description
  • High quality VHF antenna for the international AIR-band
  • Full 1/2 λ dipole antenna design
  • Full omni-directional radiation pattern
  • No groundplane needed

‍

Technical Information

Electrical specifications
Type
Beamwidth
Beamwidth
50 ohm
Frequency
118 - 137 MHz (International AIR-band)
Frequency Type
VHF – Aviation Airband (108-137 MHz)
Bandwidth
19 MHz
Impedance
50 ohm

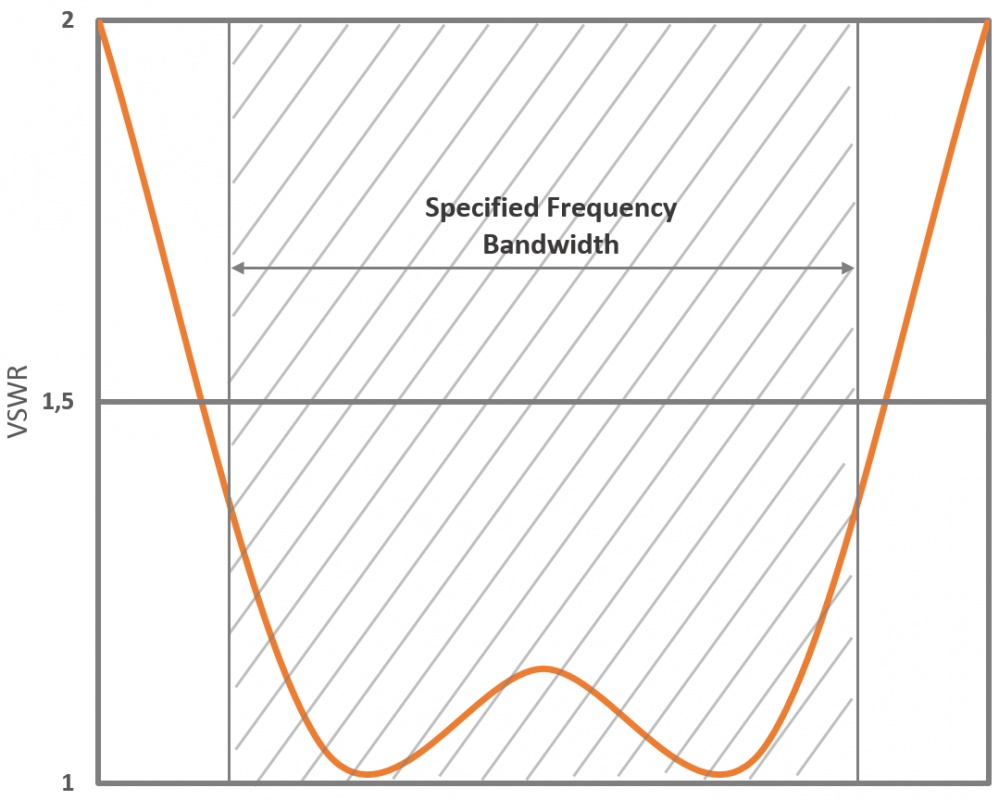

VSWR
< 1.5
Polarisation
Gain
3 dB (Marine), 0 dBd, 2.1 dBi
Electrical Beam-Tilt
Radiation Pattern
Half Power Beamwidth
Max. Input Power
100 W
Spacing
Insertion Loss
Isolation (Suppression)
Frequency Stabilty
Antistatic Protection
Attenuation
Insertion Loss (Tx)
Tx-Tx Spacing
Tx-Rx Spacing
Isolation Tx-Tx
Isolation Rx-Tx
Isolation Tx-Rx
Isolation Rx-Rx
Lna Noise Figure
Power Supply
Mechanical specifications
Color
White and chrome
Length
Approx. 1440 mm
Weight
410 g
Mounting
G1"-11 (Standard)
Mounting Place
On mast or deck
Survival Wind Speed
55 m/s (125 mph)
Operating Temperature
-55C to +70C (IEC 60068-2-1, IEC 60068-2-2)
Connector/ Cable / Pigtail
N-female
Ingress Protection
IP66
Materials
PU-painted glassfibre, copper, PTFE and chrome plated solid brass
Ordering information
No items found.
11073-000AIR
(Antenna only - bulk packing)
11073-001AIR
(Antenna only - in Polybag)
11073-002AIR
(Antenna only - in Carton tube)
11073-431AIR
(Antenna + 1" Revolving Nut Kit - in Polybag)
11073-432AIR
(Antenna + 1" Revolving Nut Kit - in Carton tube)
