WAM5G

WAM5G

5G Wall Antenna Multiband 698 - 3800 MHz

Full Description

WAM5G is a long range high gain multiband antenna, covering 698 – 3800 MHz. This wall mounted antenna is sutiable for GSM(2G), UMTS(3G), LTE(4G) and 5GNR(5G) devices.

The antenna supports Public Safety, LTE700/800 MHz, IOT/M2M, 868/915 MHz, cellular/mobile, 2G/3G/4G/5G, CCTV, security, smart metering, remote telemetry applications and etc.

  • 5G 700/800/900/1500/1800/2100/2600/3500/3800
  • 4G LTE700/800/1800/1900/2600
  • 3G UMTS700/800/900/2100
  • 2G GSM850/900/1800/1900
  • WiFi 2.4 GHz

‍

Technical Information

Electrical specifications
Type
Beamwidth
Beamwidth
50 ohm
Frequency
698 - 960 MHz, 1427 - 1518 MHz, 1710 - 2170 MHz, 2300 - 2690 MHz, 3300 - 3800 MHz
Frequency Type
5G NR – 5G (700/800/900/1500/1800/2100/2600/3500 MHz)
IoT – ISM & LoRa (433, 868, 915, 2400,5800 MHz)
LTE – 4G (800-2600 MHz)
GSM – 2G (900/1800 MHz)
UMTS – 3G (2100 MHz)
Bandwidth
See "FREQUENCY"
Impedance
50 ohm
VSWR
< 3.0:1 (698- 960 MHz) < 2.5:1 (1427- 2690 MHz/ 3300 - 3800 MHz)
Polarisation
Vertical
Gain
0 dBd, 2.15 dBi (698-960 MHz) 3 dBd, 5.15 dBi (1427-1518/1710-2170 MHz) 7 dBd, 9.15 dBi (2300-2690/3300-3800 MHz)
Electrical Beam-Tilt
Radiation Pattern
Omni-directional
Half Power Beamwidth
Max. Input Power
100 W
Spacing
Insertion Loss
Isolation (Suppression)
Frequency Stabilty
Antistatic Protection
Attenuation
Insertion Loss (Tx)
Tx-Tx Spacing
Tx-Rx Spacing
Isolation Tx-Tx
Isolation Rx-Tx
Isolation Tx-Rx
Isolation Rx-Rx
Lna Noise Figure
Power Supply
Mechanical specifications
Color
White and black
Length
457 mm
Weight
Approx. 260 g
Mounting
Integral Clamp
On wall or pole
Mounting Place
On wall or pole
Survival Wind Speed
55 m/s (125 mph)
Operating Temperature
-55C to +70C (IEC 60068-2-1, IEC 60068-2-2)
Connector/ Cable / Pigtail
N-female,No cable supplied
Ingress Protection
IP66
Materials
UV Protected PC, PTFE, PE and solid brass
Ordering information
No items found.
40102-000
Antenna only (Bulk packing)
40102-001
Antenna only (Polybag)

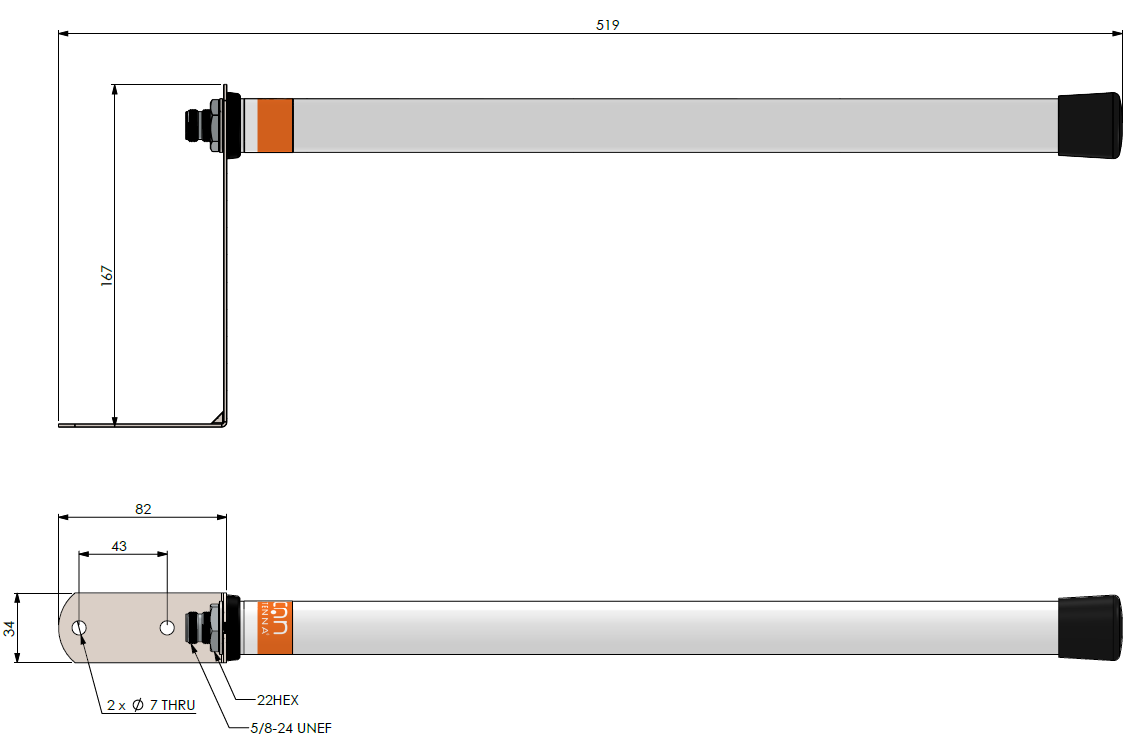

40102-011
Antenna + Wall Bracket + Mounting Kit (Polybag)
40102-021
Antenna + Pole Bracket + Mounting Kit (Polybag)
10103-011
Bracket + Mounting Kit (Polybag)
