Deploying DAS Antennas in UK Rail Tunnels and Underground Networks

The challenge: radio communications underground

UK rail tunnels and underground transit networks present severe radio propagation challenges. Concrete, earth, and steel infrastructure attenuate signals by 20 to 50 dB or more, rendering external base station coverage useless within metres of a tunnel entrance. Emergency services require reliable TETRA coverage throughout all tunnels. Commercial operators need 4G and 5G data for passenger services and operational systems.

Two technologies address this: leaky feeder cable and Distributed Antenna Systems (DAS). Understanding the trade-offs is essential for specifying the right solution.

Leaky feeder cable

How it works

Leaky feeder is a coaxial cable with controlled slots or perforations that allow radio energy to leak out and radiate along its length. The cable runs the full tunnel length, fed by a central transmitter. Signal strength is relatively uniform along the route.

Advantages

• Simpler design: single cable, no active repeaters or network switching.
• Lower cost for long straight tunnels such as motorway or single-track rail.
• Passive system: no power supply required beyond the tunnel entrance.
• Minimal maintenance: no active electronics to fail in the field.

Limitations

• Frequency-specific: each cable is designed for a narrow band, such as TETRA 380 to 400 MHz. Multi-frequency operation requires multiple cables running in parallel.
• Multi-operator challenge: a single leaky feeder cannot serve TETRA, 4G, and 5G simultaneously without complex filtering and isolation.
• Coverage pattern: uneven at bends and junctions; difficult to tune without active components.

Distributed Antenna System (DAS): active coverage

How it works

DAS uses multiple antenna nodes distributed along a tunnel, each fed by a central hub via optical fibre or shielded cable. The hub accepts signals from external base stations or local equipment and distributes them to the nodes.

Advantages

• Supports multiple frequency bands and operators simultaneously via a single set of in-tunnel nodes.
• Precise coverage control: each node's power and timing can be adjusted independently.
• Scalable: add nodes as coverage demands change.
• Optimal for complex topologies: branched tunnels, junctions, and platforms.
• Future-proof: firmware updates enable new bands and protocols without hardware replacement.

Limitations

• Higher capital cost: active electronics and infrastructure throughout the tunnel.
• Power and cooling required at each node and central hub.
• More complex maintenance: active electronics require periodic testing and spare components.
• Single point of failure risk if hub fails, mitigated with redundant hub configurations.

UK compliance and standards

Network Rail

All in-tunnel radio systems on national rail infrastructure must meet Network Rail Technical Specification NR/L2/OPS/065. This mandates continuous coverage above -85 dBm throughout all operational tunnels for TETRA emergency services.

London Underground and TfL

London Underground operates its own radio network with independent DAS infrastructure. 4G and 5G coverage in Underground stations is provided by operators using separate DAS systems. Cross-operator interference is managed by filtering and diplexing at the hub.

Ofcom frequency allocation

TETRA, 4G, and 5G each have dedicated frequency bands. DAS hubs must separate incoming signals from multiple operators before distribution to avoid interference between services.

DAS architecture: passive vs active

Passive DAS

Comprises a distribution network of fibre or coax with passive splitters, couplers, and combiners but no amplification. Used for shorter tunnels (typically under 5 km) with moderate coverage depth requirements. Lower cost and simpler to operate.

Active DAS

Includes amplifiers and signal conditioning at the hub and optional remote units. Essential for long tunnels, multi-operator scenarios, and where external base station signals must be distributed underground across significant distances.

Multi-operator DAS: diplexers and combiners

When a tunnel serves multiple operators, for example TETRA at 380 to 400 MHz, 4G at 1800 MHz, and 5G at 3.5 GHz, the DAS hub uses diplexers and combiners to separate incoming signals by frequency band, amplify each band independently, and combine them onto the distribution cable. The same process is reversed on the receive path.

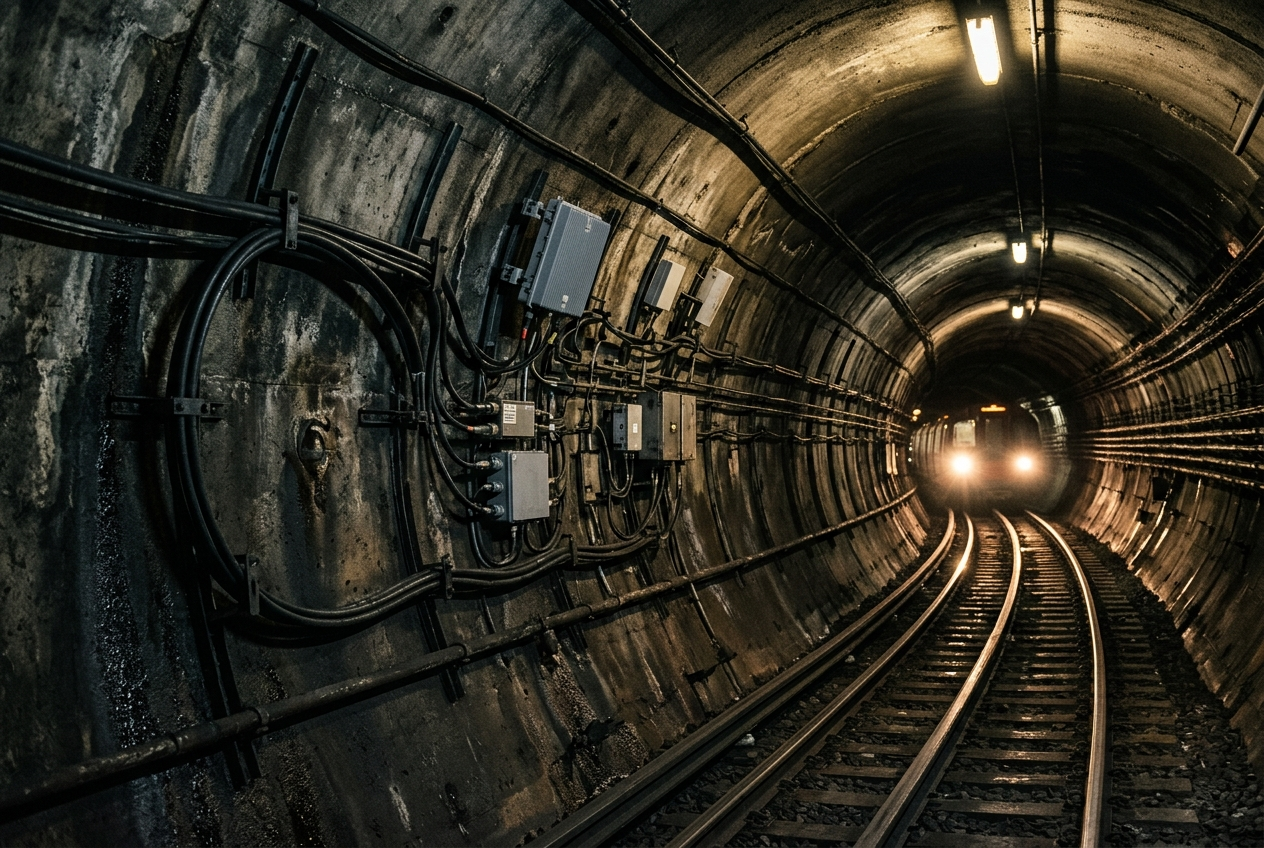

In-tunnel antenna node considerations

DAS nodes in tunnels are typically dome or wall-mount antennas positioned 100 to 150 metres apart. Spacing depends on tunnel cross-section, construction material, and frequency band. Lower frequencies such as TETRA and 700 MHz 4G require wider spacing than higher bands such as 3.5 GHz 5G.

Maintenance and testing requirements

• Annual baseline testing: Measure received signal strength at multiple points along the tunnel to confirm coverage levels are maintained.
• Node health monitoring: Active DAS hubs typically include diagnostics to flag failed amplifiers or antenna connections.
• Cable integrity: Leaky feeder requires periodic inspection for water ingress and physical damage along the route.
• Redundancy testing: For critical tunnels, test failover to backup hubs or feeder routes at least annually.
• Operator coordination: Multi-operator tunnels need regular inter-operator testing to verify isolation and prevent interference between services.

Design checklist for UK tunnel DAS

• Application type confirmed: TETRA only or multi-operator?
• Tunnel geometry measured: length, cross-section, geology, bends?
• Regulatory compliance reviewed: Network Rail, TfL, Ofcom?
• Technology selected: leaky feeder, passive DAS, or active DAS?
• Component specifications verified: frequency bands, connector types, power ratings?
• Site survey completed to identify optimal node and feeder routing?
• Installation and test procedures documented?
• Maintenance and monitoring plan established?

Next steps

For DAS design and component supply for UK rail and underground applications, contact Renair's technical team at sales@renair.co.uk. We supply DAS node antennas, passive RF components, and can support bespoke system design.
