Understanding VSWR and Return Loss: A Guide for Installers

What is VSWR?

VSWR (Voltage Standing Wave Ratio) measures how well an antenna is matched to the radio equipment feeding it. A perfect match has a VSWR of 1:1. In practice, antennas are considered acceptable if VSWR stays below 2:1 across their operating band.

Think of VSWR like water pressure in a pipe: when the pipe diameter changes abruptly, pressure waves bounce back. The same principle applies to antennas: when the antenna impedance does not match the 50-ohm feeder, radio waves reflect back down the cable instead of radiating into the air.

Practical VSWR limits

• 1:1 to 1.2:1 -- Excellent. Nearly all energy radiates; minimal loss.
• 1.2:1 to 1.5:1 -- Good. Acceptable for most applications. Around 5 to 10% power loss.
• 1.5:1 to 2:1 -- Acceptable. Performance degraded but usable. Around 10 to 25% power loss.
• Above 2:1 -- Poor. Significant loss and potential radio damage from transmitter impedance mismatch.

Return loss: the dB equivalent

Return loss (measured in dB) is VSWR expressed in decibels. Higher return loss is better.

Conversion reference

• VSWR 1.5:1 is approximately -14 dB return loss
• VSWR 2:1 is approximately -9.5 dB return loss
• VSWR 3:1 is approximately -6 dB return loss

VSWR is intuitive to field technicians (lower number equals better). Return loss is how RF engineers specify system requirements. You will see both on antenna datasheets and it helps to be comfortable converting between them.

How to measure VSWR

SWR meter

A basic SWR meter connects between the radio and antenna at the connector, measures reflected versus forward power, and displays VSWR. Cost is typically GBP 20 to GBP 100 for basic models. These give quick go/no-go results in the field but lack frequency detail and precision for fault-finding.

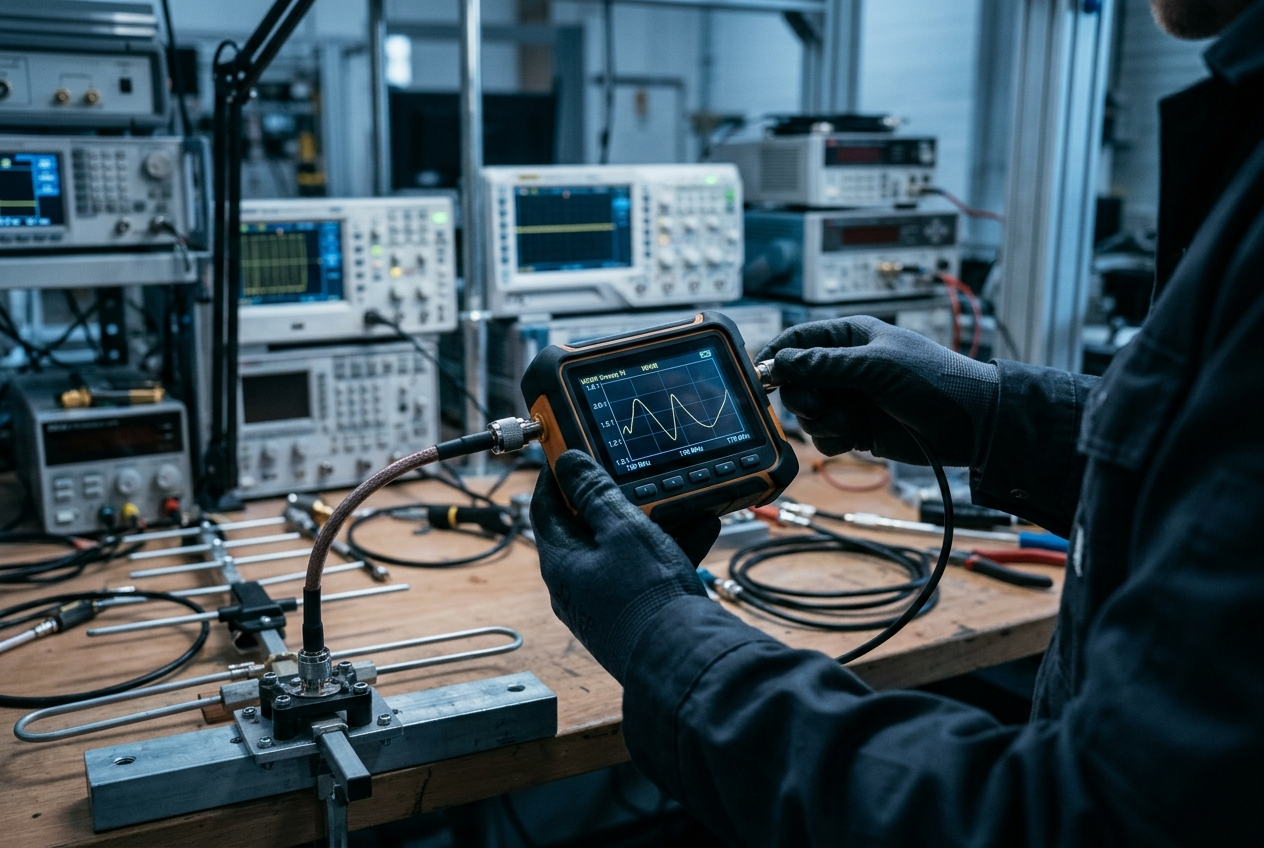

Antenna analyser

An antenna analyser connects to the antenna feed point and measures impedance and VSWR across a frequency range. You can see exactly which frequencies have poor match. Tools such as the NanoVNA are available for around GBP 50 to GBP 150 and are the professional approach to commissioning verification and fault diagnosis.

Network analyser

High-accuracy laboratory measurement, used for type approval and design validation. Field technicians rarely need this level of precision, but understanding that the datasheet figures were measured using this equipment helps calibrate expectations.

Common causes of poor VSWR

Damaged or wet coax cable

Water ingress changes the cable's impedance. If VSWR has degraded since installation, check for cracked jacket, pooling water near connectors, or cuts in the outer jacket. Dry out the cable or replace the affected section.

Wrong connector type or damaged connector

Type-N and SMA connectors have different impedance characteristics. Confirm connector types match at both ends. Inspect for bent or corroded pins. A damaged connector is one of the most common and most easily overlooked causes of poor VSWR on site.

Inadequate or degraded ground plane

Antenna impedance depends on the ground plane. A roof-mounted antenna on a steel vehicle has excellent ground plane performance. Mounting on fibreglass, composite, or in isolation causes impedance shift. For ground-plane-dependent antennas mounted away from metal, an auxiliary ground plane (0.5 to 1 square metre of copper mesh) can restore performance.

Antenna used outside its specified band

An antenna is designed for a specific frequency range. If used outside that range, VSWR rises sharply. Verify that the antenna is specified for your operating frequency, checking the datasheet curve rather than just the headline figure.

Loose connectors and cable kinks

A partially seated connector introduces intermittent impedance discontinuity. Always fully seat connectors and torque to specification. Sharp bends or kinks in coax change impedance locally; route cables carefully and avoid tight loops.

Troubleshooting step-by-step

1. Measure VSWR using an SWR meter or analyser across the operating band.
2. Is VSWR below 2:1? If yes, the antenna is working. The problem is likely elsewhere in the system. If no, continue.
3. Check the cable for water damage. Disconnect the antenna, dry the cable if needed, and re-measure. If VSWR improves, the cable was the cause. Replace or dry thoroughly.
4. Verify the connector. Confirm connector type is correct and check for damaged pins. Test with a known-good connector if available. If VSWR improves, replace the faulty connector.
5. Check the ground plane. For roof-mounted antennas, confirm solid metal contact. Consider adding auxiliary ground plane. If VSWR improves, ground plane was inadequate.
6. Verify the antenna's frequency band. Measure VSWR at the band edges and centre. If poor match only appears outside the specified band, the antenna is being used out of spec. If poor match persists across the entire specified band, the antenna is damaged or the wrong part number.

Cable loss and VSWR

Poor VSWR causes power loss in two ways: reflected power returns down the cable instead of radiating, and high VSWR can cause transmitter instability and stress to radio circuitry. For long cable runs, specify low-loss coaxial cable to minimise attenuation. Every metre of standard coax at 800 MHz adds approximately 0.2 dB loss; low-loss equivalents add around 0.08 dB per metre.

Summary checklist

• Target VSWR below 2:1 across the operating band.
• Use an SWR meter or antenna analyser to measure; field testing is essential at commissioning.
• Most common causes: water-damaged cable, wrong or loose connector, poor ground plane, antenna used out of band.
• Document the commissioned VSWR baseline so degradation is identifiable at future maintenance visits.
• For complex troubleshooting, contact Renair's technical team at sales@renair.co.uk.
